V204

主頁  > 產品展示  > 直閥  > V204

產品詳情

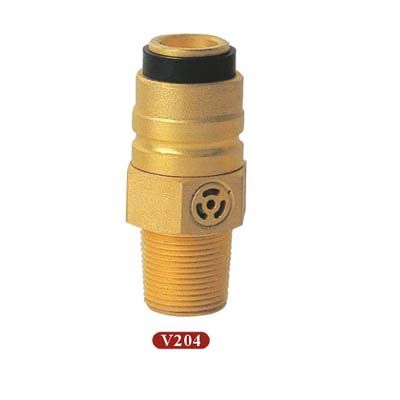

產品名稱液化石油氣瓶直閥
Product nameLPG Cylinder   Straight Valve
型號V204
ModelV204
工作壓力250PSI   (1.7MPa)
Working pressure250PSI   (1.7MPa)
公稱通徑4mm
Seal diameter4mm
進口螺紋PZ27.8
Inlet threadPZ27.8
出口外徑25mm
Outlet Ext Dia22mm
安全釋放壓力375PSI   (2.6MPa)
Safety release   pressure375PSI   (2.6MPa)
主材黃銅HPb 59-1。其它牌號可提供
Main materialBrass   HPb 59-1. Other numbers are available.
有其它多個規格，或訂做
There are many other specifications, or customized.
